Sand washing machine 2LSX920
Screw Sand washing machine 2LSX920 Introduction
Working Principle Of Screw Sand Washing
Washing:The sand is feeding into the sediment pool from the feeding box, acting by rotating screw blade, the sand is turning and rolling and grinding each other to eliminate impurity and water-air layer around sand to facilitate de-water. The fresh eater rising current from the porous plate carry foreign matter to water surface and overflow the weir plate, to finish washing processing
De-watering:The sand with bigger density is sunken down to tub bottom, the screw blade pushes this sand upwards, when passing through upper tub of proper length above water level, the water is draining into sediment pool from another drainage ditch, the de-watered sand is out from the discharging opening.
Classifying:Material classifying is realized by overflowing the non-needed fines, the controlling method is adjusting height of overflowing weir and adjusting speed of screw.
-
Screw Sand washing machine 2LSX920 Parameter :
- Capacity: 200 t/h
- Max inlet size: 10(mm)
- Electric power: 11*2(kw)
- Get Price
Screw Sand washing machine 2LSX920 Capacity
SBM sand washing machine 2LSX920 been widely applied in mining, beneficiation, construction, road and railway building, quarry and aggregate production line etc. for different raw materials, Sand washing machine 2LSX920 capacity varying 200 t/h. water consumption is 20-160 t/h.
Screw Sand washing machine 2LSX920 Max inlet size
Sand washing machine 2LSX920 Max inlet size is 10(mm),if this Max inlet size is not suit for your production line, you can take a look our the others type Sand washing machines, or click here get help online.
Screw Sand washing machine 2LSX920 Electric power
Powder is an important indicator of Sand washing machine performance, 2LSX920 Electric power is 11*2(kw).

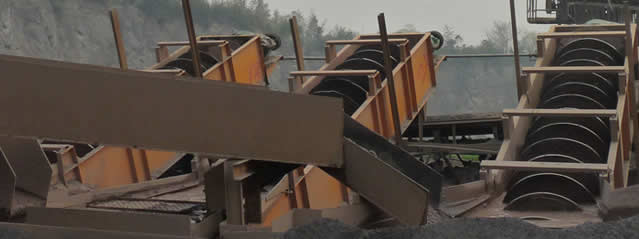

Screw Sand washing machine Image
